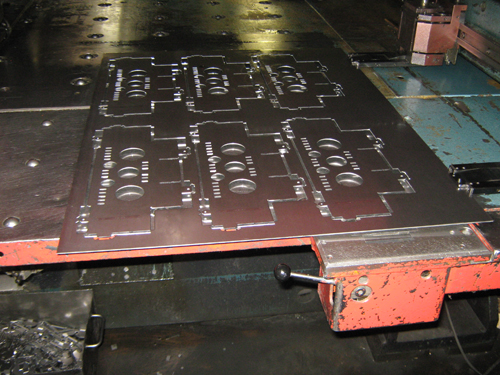

NC Punching Services
(click on thumbnail to enlarge)
G & M Metal Fabricators offers precision CNC metal forming utilizing cutting edge numerical control systems with press ratings of 20.5 to 33 tons at 20 to 40 stations. We can punch, stamp, blank, pierce and form stainless steel, cold-rolled steel, copper and aluminum and provide secondary, stage, progressive and temporary tooling.
We work with a maximum stock thickness of .125" on stainless steel, .187" on cold-rolled steel and .250" on aluminum. On light gauge, we can handle a minimum hole size of .050" and a maximum of 3.75" without nibbling. We offer +/-.004" repeatability between feature centers and punched hole sizes of +/-.0005" not including the blowout.
In addition to the CNC metal forming services, we offer assembly, hardware and finishing as well as in-house quality inspection and compliance with EIA, NEMA and UL standards. We typically require lead times of six weeks, and can produce volumes from prototype to production volumes.
You can find more detailed CNC metal forming specifications in the chart below and can contact us if you require additional information.
Portfolio
- Fabrication of an Aluminum Rack Assembly for the Science (Lab testing) Industry
- Fabrication of a Cold Rolled Steel Enclosure for the Electrical Industry
- Fabrication of an Aluminum Enclosure for the Telecommunications Industry
- Manufacturing of a Cold Rolled Steel Charging Station for the Wireless Radio Industry
- Fabrication of a Common Shelf Assembly for the Telecommunications Industry
Precision CNC Metal Forming Capabilities
- Production Method
-
- Punching
Stamping
Blanking - Piercing
Forming
- Punching
- Tooling
-
- Secondary
Stage - Progressive
Temporary
- Secondary
- Equipment Capabilities
- Numerical Control Systems
- Press Rating
- 20.5 to 33 tons
- Stations
- 20 to 40
- Materials
-
- Stainless Steel
Cold Rolled Steel - Copper
Aluminum
- Stainless Steel
- Stainless Steel Maximum Stock Thickness
- .125 in
- Cold Rolled Steel Maximum Stock Thickness
- .187 in
- Aluminum Maximum Stock Thickness
- .250 in
- Maximum Length
- 78 in
- Maximum Width
- 48 in
- Minimum Hole Size (Light Gauge Only)
- .050 in
- Maximum Hole Size (Without Nibbling)
- 3.75 in
- Between Feature Centers Repeatability
- ± .004 in
- Sheet Edge to Punch Feature Repeatability
- ± .007 in (≤ 16 gauge)
± .011 in (> 16 gauge)
- Punched Hole Size (Not Including Blowout)
- ± .0005 in
- Additional Services
- Assembly
Hardware
Finishing
- Quality
- Inspection Department
- Additional Products
-
- Consumer Ready Packaging and Labeling
Custom Rack Enclosures
Fiber Optic Chassis
Circuit Board Chassis
Electronic Displays - EIA Enclosures
NEMA Rated Enclosures
UL Rated Products
Seismic Rated Racks
Light Electronic Assembly
- Consumer Ready Packaging and Labeling
- Production Volume
- Prototype to Production
- Lead Time
- 6 weeks
